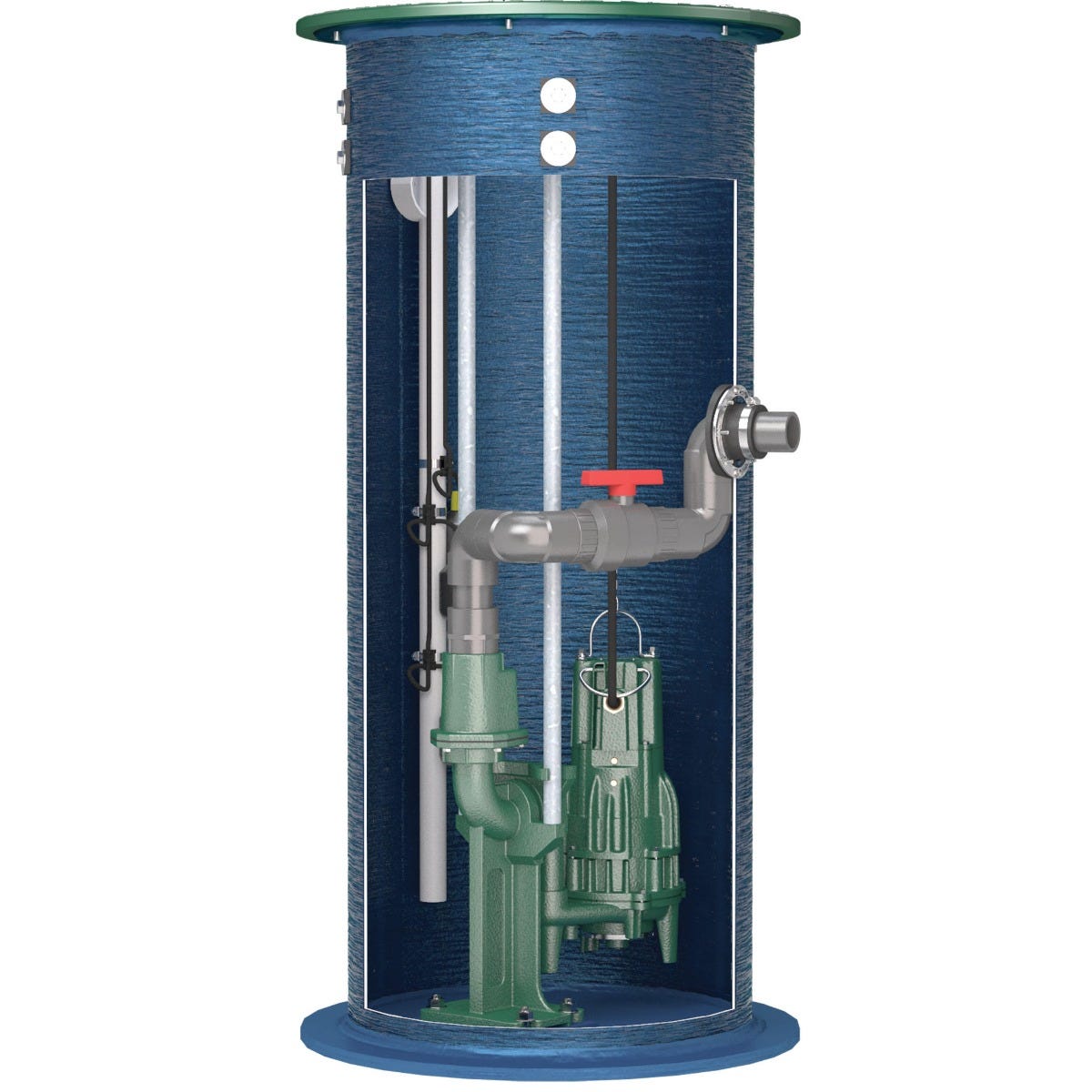

922 Simplex 24" x 48" Lift Station Package (Outdoor) with 2 HP Shark Pump
This is a prepackaged outdoor grinder lift station with a 24" x 48" basin. It includes the Zoeller WDH820 "Shark" Grinder Pump (2 HP, 230V, Automatic). The basin is made of fiberglass with a solid fiberglass cover. Features include the Z-Rail® Disconnect System for easy pump removal and an Outdoor Alarm System (A-Pak). It is suitable for residential pressure sewer systems with standard frost-line depths.
922 Simplex 24" x 48" Lift Station Package (Outdoor) with 2 HP Shark Pump
The On the Shelf prepackaged basin assembly is a complete system featuring a 2 HP Model WDH820 grinder pump with Tri-Slice® cutter technology, a 24″ x 48″ basin, an alarm panel, and float switches. The 200-230 Volt Model 820 grinder pump efficiently reduces solids to 1/8″ for demanding sewage applications, featuring a cast iron body, stainless steel hardware, and a hardwired wide-angle float for automatic operation.

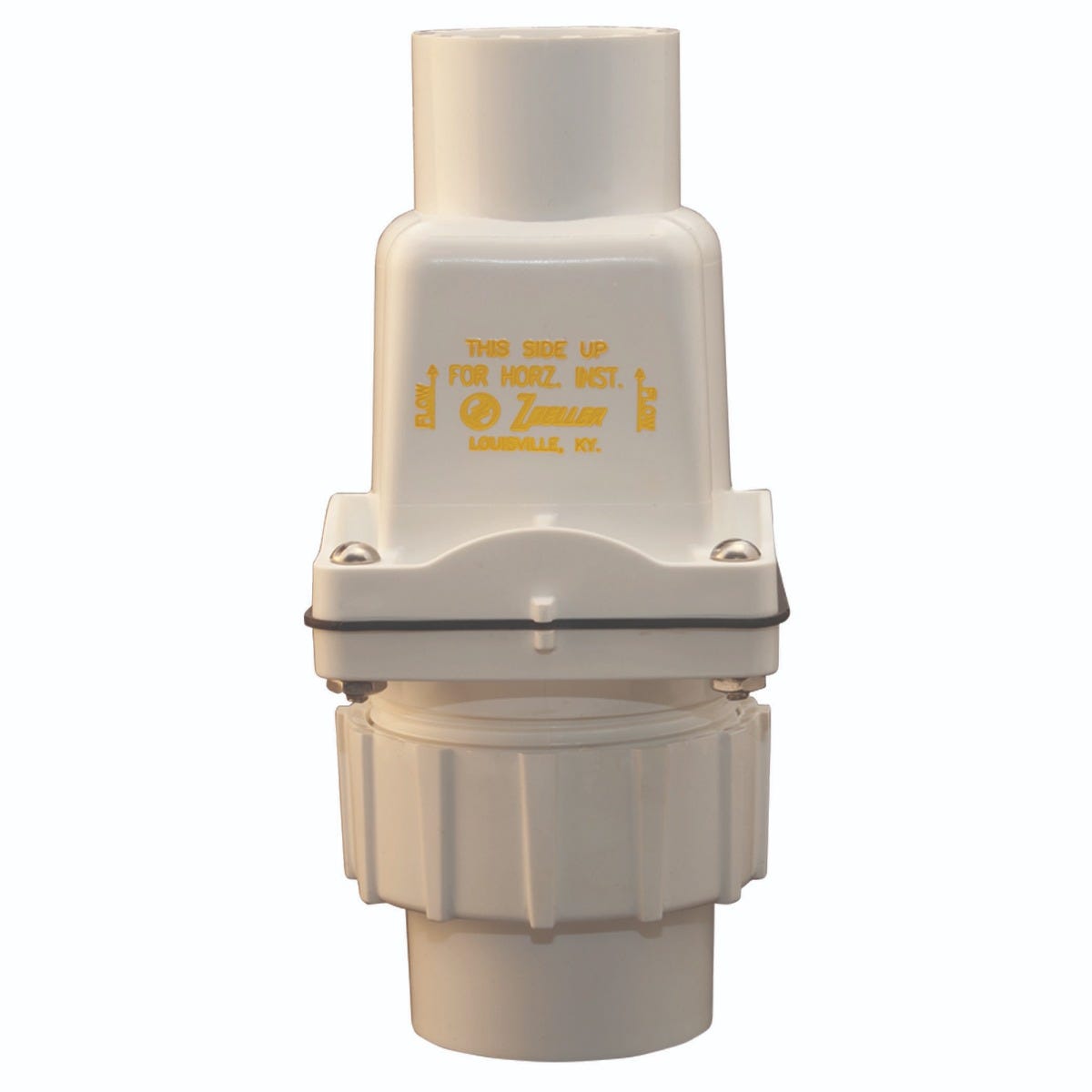

The job-ready 24″ x 48″ fiberglass basin includes Zoeller’s Z-Rail system for easy installation, a ball and check valve, 2″ discharge plumbing, and a 300 PSF-rated fiberglass cover. It ships with a 4″ inlet and two 2″ pipe seals (vent/conduit) for field drilling. An integral anti-flotation device (AFD) secures the basin against high water tables.
The NEMA 4X A-Pak alarm provides audible (85 dB at 10′) and visual (red LED) high water warnings to prevent overflow. It includes a Silence/Reset/Test toggle switch and a durable, variable level control switch.
| Dimensions | |
|---|---|
| Length | 34" |
| Width | 34" |
| Height | 48" |
| Weight | 225lbs |
| Inlet | 4 |
| Power Cord Length | 120" |
| Key Specs | |
|---|---|
| Manufacturer | Zoeller Pump |
| Max Temperature | 130 |
| Power Type | Electric |
| Horsepower | 2 |
| Voltage | 230 |
| Maximum Flow Rate (GPM) | 128 |
| Warranty | 3 years |
| Shipping Height | 48" |
| Shipping Length | 34" |
| Shipping Weight | 225lbs |
| Shipping Width | 34" |
| Ship Class | UPS |
