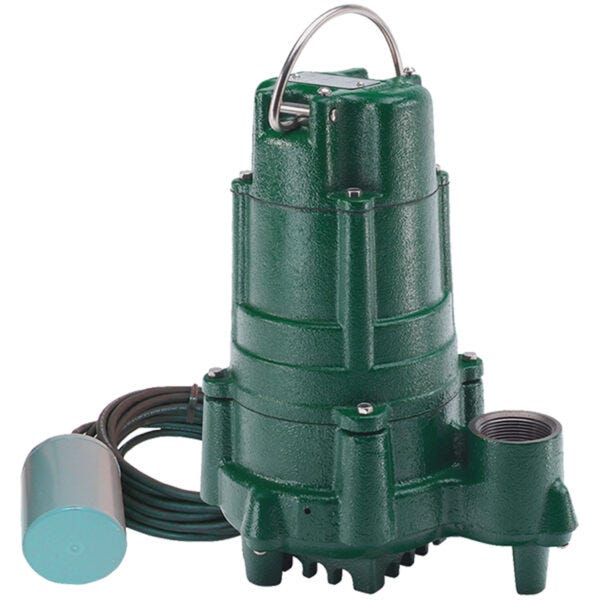

BN145 Effluent Pump with 20 ft Cord and Switch - 115V
This pump is recommended for special effluent systems where a standard effluent pump cannot provide the required pressure.
BN145 Effluent Pump with 20 ft Cord and Switch - 115V
The Zoeller 145 is an ideal and cost-effective solution for residential systems requiring high pressure. This 1/2 HP, 115V model is designed to deliver the necessary "head" or pressure for applications such as operating sprinkler systems (with properly treated effluent) or overcoming significant resistance from very long pipe runs to distant or elevated drainfields. It includes a piggyback float switch for automatic operation.
Performance Example: Perfect for applications needing approximately 30 PSI, this pump can deliver 15-20 GPM even when pumping effluent 30 feet vertically through 200 feet of pipe.
-
Phase: 1 Ph
-
Amps: 13.0
-
Hertz: 60 Hz
-
RPM: 3450
-
Discharge: 1-1/2" NPT
-
Solids Handling: 3/4" (19 mm) spherical solids
-
Impeller Material: Engineered Plastic
-
Impeller Type: Single vane
Important Note: Always confirm your system's specific pressure (PSI) and flow (GPM) requirements before ordering.
| Dimensions | |
|---|---|
| Length | 16.5" |
| Width | 11" |
| Height | 13.75" |
| Weight | 48lbs |
| Power Cord Length | 20 ft |
| Key Specs | |
|---|---|
| Manufacturer | Zoeller Pump |
| Power Type | Electric |
| Horsepower | 0.5 |
| Voltage | 230 |
| Maximum Flow Rate (GPM) | 40-45 |
| Warranty | 1 years |
| Shipping Height | 14" |
| Shipping Length | 17" |
| Shipping Weight | 48lbs |
| Shipping Width | 11" |
| Ship Class | UPS |
