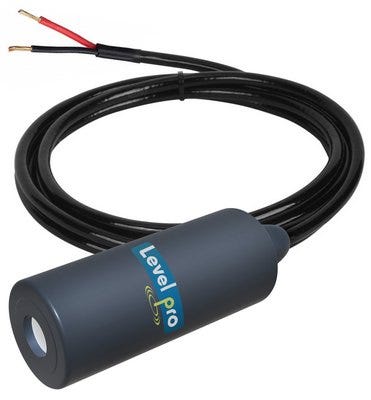

LevelPro 100 Series PVC Submersible Level Sensor

SKU
TR-191-1001-A113315
Manufacturer Part
191-1001-A113315
$1,284.00

Accuracy of the images may vary. Refer to the specifications table to ensure precision.

The LevelPro® 100 Series Submersible Level Sensor provides continuous level measurement for both corrosive and non-corrosive liquids. These submersible hydrostatic transmitters have been designed for the toughest industrial applications. Unlike ultrasonic level transmitters, our liquid level sensors are completely unaffected by any foam, vapor, turbulence or condensate in the tank.



The 100 Series Tank Level Sensor works by sitting at the bottom of the tank and measuring the head pressure of the liquid pushing down on its ceramic sensing diaphragm. The only submersible level sensor with an integral molded weight to ensure the sensor will remain at the bottom and you will always receive an accurate, reliable reading.



These plastic level sensors have been engineered to be completely corrosion resistant. They are available in PVC, PVDF and 316SS making them the perfect chemical tank level sensors. All models come equipped with a Teflon® jacketed cable and a Kalrez® O-ring seal to ensure it stands up to the industry’s most corrosive chemicals.



The LevelPro Submersible Level Transmitters require no programming, have no moving parts and are engineered with a non-clogging design. They are the industry’s simplest, most reliable level sensors, making them the perfect solution for tough applications where ultrasonics will not preform.

Features:

  • PVC Sensor Body.
  • Kalrez® O-Ring Seal.
  • Integral Weight-No Floating.
  • High Accuracy: ±0.5%.
  • Flush Sensor | Non-Clogging Design.
  • Teflon® Jacketed Cable.
  • Excellent for Foam | Vapor | Condensate | Turbulence.
  • Ceramic Sensing Diaphragm.
Key Specs
Dimensions
Length 10"
Width 10"
Height 10"
General
Manufacturer Icon Process Controls
Manufacturer Part Number 191-1001-A113315
Shipping Height 10"
Shipping Length 10"
Shipping Weight 3lbs
Shipping Width 10"
Ship Class UPS
