5025 Gallon Plastic Horizontal Leg Tank in Black

Manufacturer Part
The horizontal leg tank is used for above ground water, it is rectangular and it is made of polyethylene plastic. This tank is for storage and is not designed to be pressurized, it works for agriculture.

Accuracy of the images may vary. Refer to the specifications table to ensure precision.

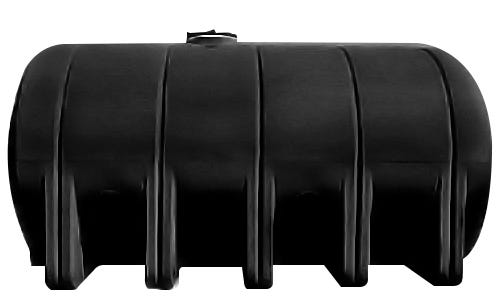

5025 Gallon Horizontal Leg Tank

Norwesco Industries is a leading North American manufacturer of proprietary rotationally molded polyethylene horizontal leg tanks for above ground water & liquid transport & storage applications.

Leg Tank Specifications:
Lid Size:16" Vented Hinged Manway
Outlet:3" Female NPT Bulkhead Fitting w/ 2" Reducer & Siphon Tube
Can Outlet Be Upsized:Yes By Request. 4" Maximum (additional charge)
Additional Fittings:Available By Request
Specific Gravity:1.5 (12.50 lbs. per gallon)
Tie Down Hoops:Yes (5) (Sold Separately) (Required For Warranty)
Gallon Markers:Yes
UV InhibitorsYes
Colors:Natural White. Black
Translucent:(Yes - White) (No - Black)
FDA Approved:Yes - Complies with FDA regulation 21 CRF 177.1520 (1) 3.1 and 3.2
ANSI / NSF 61 Approved Resin:Yes
NSF Sticker Availability Locations:California. Ohio
Uses:Liquids & Potable Water Transport or Stationary
DOT Approved:No
Sits Flat:Yes

Horizontal Leg Tanks are for storage and are not designed to be pressurized.
Technical Drawings
View Technical Drawing

Key Specs
Gallon Capacity 5025
Specific Gravity 1.5
Orientation Horizontal
Length 190"
Width 92"
Height 96"
Weight 1510lbs
Material Polyethylene
Manufacturer Norwesco
Manufacturer Part Number 41879
Color Black
Warranty 3 years years
Country of Manufacture US
Shipping Height 96"
Shipping Length 190"
Shipping Weight 1510lbs
Shipping Width 92"
Ship Class OVS
