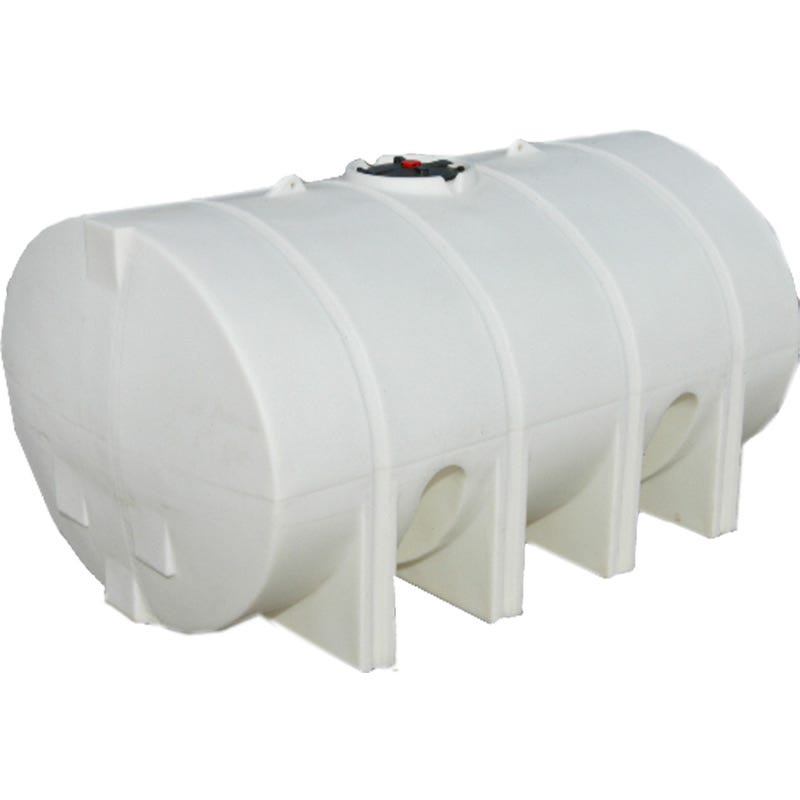

3400 Gallon Plastic Horizontal Leg Tank with Securing Hoops

Manufacturer Part

3400 Gallon Horizontal Leg Tank (Includes Bolt Down Hoops)

Accuracy of the images may vary. Refer to the specifications table to ensure precision.

 Only 82 wide this tank is great for sitting in the back of a dump truck. 3400 Gallon Snyder Horizontal Water & Liquid Storage Tank Includes:

  • 24” Vented Manway
  • 3” Female Threaded NPT Outlet Fitting.
  • This tank sits flat on the ground.
  • 1.9 Specific Gravity (15.83 lbs. per gallon)
  • Tie down hoops are Included on this item.
  • non-DOT approved

Commercial grade Snyder tank is a standard fitting tank. If you need custom fittings you'll need to upgrade to a Snyder industrial tank. (see related item below)

Technical Drawings
View Technical Drawing

Key Specs
FDA Approved Yes
Gallon Capacity 3400
Lid Size 24"
NSF / ANSI 61 Approved Resin Yes
Outlet 3
UV Inhibitors Yes
Specific Gravity 1.5
Length 155"
Width 82"
Height 86"
Weight 1500lbs
Material Polyethylene
Manufacturer Snyder Industries
Manufacturer Part Number 7520000C37
Color White
Warranty 3 years
Shipping Height 86"
Shipping Length 155"
Shipping Weight 1500lbs
Shipping Width 86"
Ship Class OVS
