1250 Gallon 45 Degree Plastic Vertical Cone Bottom Tank

Manufacturer Part

Accuracy of the images may vary. Refer to the specifications table to ensure precision.

1250 Gallon Heavy Duty Cone Bottom Water & Liquid Storage Tank

1250 Gallon Cone Bottom Water & Liquid Storage Tank Includes:
  • 18” Vented Manway
  • Outlet Fitting By Request (additional charge will apply)
  • Translucent white allows for level visibility
  • 1.9 Specific Gravity - holds 15.83 lbs. per gallon
  • Gallon Indicators

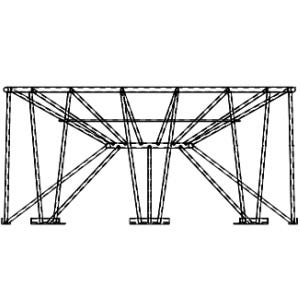

  • Total Height With Stand – 91”
  • Clearance From Bottom of the Cone – 22.60”
  • NO Tie Down Lugs

Cone bottom tanks are not ASTM D1998 design.

Dimensions may vary + or - 3% (standard rotational molding tolerance).

We recommend that all tanks be protective plastic wrapped.

Maximum operating temperature recommended for Cone Bottom tanks is 100 degrees F.

Technical Drawings
View Product PDF

Key Specs
Diameter 95"
Gallon Capacity 1250
Lid Size 18"
Specific Gravity 1.9
Cone Degree 45
Length 95"
Width 95"
Height 70"
Material Polyethylene
Manufacturer Snyder Industries
Manufacturer Part Number 8310000N45
Shipping Height 69.75"
Shipping Length 95"
Shipping Weight 300lbs
Shipping Width 69.75"
Ship Class LTL
