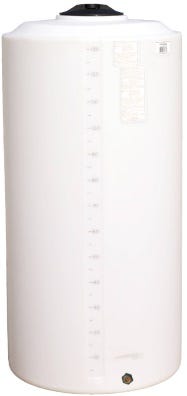

225 Gallon Plastic Vertical Liquid Storage Tank in White

Manufacturer Part
ADD-ONS We suggest these additional items.

Accuracy of the images may vary. Refer to the specifications table to ensure precision.

225 Gallon Vertical Plastic Storage Tank

Norwesco Industries is a leading North American manufacturer of proprietary rotationally molded polyethylene tanks for above ground water & liquid storage applications.

Vertical Tank Specifications:
Lid Size: 8" Manway
Inlet: N/A
Outlet: 2” female threaded NPT outlet fitting
Specific Gravity: 1.5 (12.50 lbs. per gallon)
FDA Approved: Yes
Gallon Markers: Yes
UV Inhibitors Yes
Colors: Natural White, Black
Tie Down Lugs: No
Translucent: Yes (White Only)
ANSI / NSF 61 Approved Resin: Yes
NSF Sticker Available: Ohio
Additional Fittings: Available By Request
Usage: Liquids, Potable water
Vertical Plastic Storage Tanks are for storage and are not designed to be pressurized.


Shipping Notes:
Ship Class: 300
Ship Weight: 59 Lbs.


Technical Drawings
View Technical Drawing

Key Specs
Diameter 31"
Gallon Capacity 225
Inlet NO FTG
Lid Size 8"
Outlet 2
Shape Cylindrical
Specific Gravity 1.5
Orientation Vertical
Length 31"
Width 31"
Height 77"
Weight 60lbs
Material Polyethylene
Manufacturer Norwesco
Manufacturer Part Number 44538
Color White
Warranty 3 years years
Shipping Height 83"
Shipping Length 48"
Shipping Weight 105lbs
Shipping Width 40"
Ship Class LTL
NMFC Code 156600-8965
