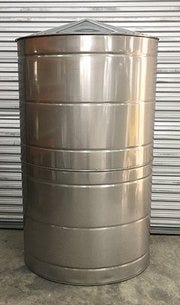

400 Gallon Steel Vertical Rainwater Harvesting Tank

Manufacturer Part
These galvanized steel tanks are suitable for any environment and temperature. Designed for durability and resistance to rust, erode and discolor. These are a cost-effective alternative to stainless steel tanks.

Accuracy of the images may vary. Refer to the specifications table to ensure precision.

400 Gallon Galvanized Rain Water Tank

Tanks are constructed of 20 gauge G-90 galvanized steel.
Galvanized tanks are lined with a paint/epoxy to protect the metal. This is FDA approved for potable water and meets ANSI/NSF 61 specifications. Galvanized tanks have a warranty of 1 year.
Tanks should be installed on a solid base. Concrete pads or crushed granite are well suited.

Rainwater Standard Package includes:
  • 1 16 strainer basket
  • 1 3 or 4 overflow
  • 1 2" Female NPT Threaded Outlet

Additional Shipment Preparation Fee Required: $50
The Shipment Preparation Fee is per tank and includes materials and packaging of the tank to prevent damage during transit.
Technical Drawings
View Technical Drawing

Key Specs
Diameter 42"
Gallon Capacity 400
Lid Size 16"
Orientation Vertical
Length 42"
Width 42"
Height 68"
Weight 170lbs
Material Steel
Manufacturer Texas Metal Tanks
Manufacturer Part Number MT400G-RW
Disclaimers A 12" strainer basket and 3" overflow are included with tanks under 2600gal. Anything larger will come with a 16" strainer basket and a 4" overflow.
Shipping Height 74"
Shipping Length 48"
Shipping Weight 215lbs
Shipping Width 42"
Ship Class LTL
NMFC Code 104600
